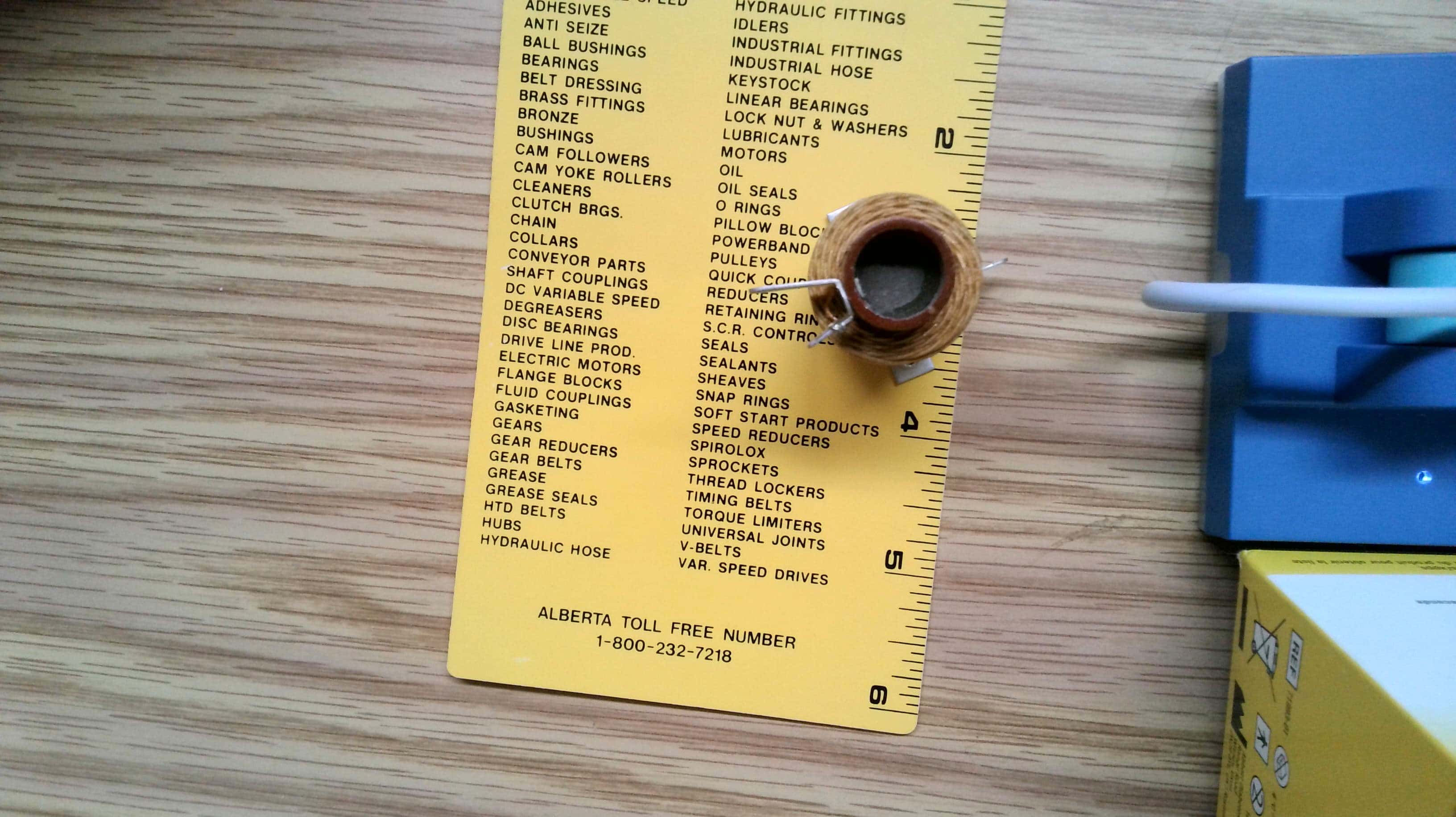

RF Coil
NSN 5950-00-249-2558

Turn Quantity 210
INDUCTANCE Rating 1.08 MILLIHENRIES
COIL FORM TYPE HOLLOW
CORE CONSTRUCTION POWDERED
BODY LENGTH 1.680 INCHES NOMINAL
BODY OUTSIDE DIAMETER 1.000 INCHES NOMINAL
DISTANCE BETWEEN MOUNTING FACILITY CENTERS 0.969 INCHES
MOUNTING FACILITY QUANTITY 2 SINGLE GROUP
MOUNTING METHOD FLANGE SINGLE GROUP AND THREADED HOLE SINGLE GROUP
THREAD QUANTITY PER INCH 32 SINGLE GROUP
NOMINAL THREAD SIZE 0.138 INCHES SINGLE GROUP
WINDING CONDUCTOR SIZE 0.01594 INCHES
WINDING OPERATING CURRENT 300.0 MILLIAMPERES DC
DC RESISTANCE RATING IN OHMS 1.960
THREAD SERIES DESIGNATOR UNC SINGLE GROUP
TERMINAL TYPE AND QUANTITY 2 TAB, SOLDER LUG
