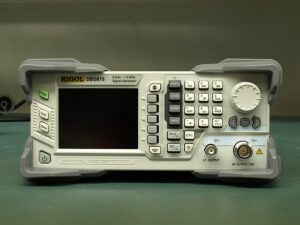

A signal generator is an electronic device that produces electrical signals at various frequencies and amplitudes. It is a high-stability oscillator, meaning it can maintain a constant frequency over time. Signal generators are used in testing, designing, and repairing electronic equipment by providing a known signal for testing the response of a circuit.

The RMS (Root Mean Square) value of an AC voltage is the equivalent DC voltage that would cause the same amount of heat in a resistor. This is a practical way to compare the ‘effectiveness’ of AC and DC voltages. The RMS value is particularly useful because it allows for a direct comparison of AC and DC in terms of power delivery to a load, like a resistor.

To calculate the PEP from a 500 volts peak-to-peak measurement across a 50-ohm load, first, find the peak voltage (250 volts, as peak-to-peak is double the peak), then convert to RMS by multiplying by 0.707 (about 176.75 volts), square this (about 31250), and divide by the load resistance (50 ohms). This calculation results in 625 watts, which is the peak power output of the transmitter.

To find the PEP from a 200 volts peak-to-peak measurement across a 50-ohm load, first, find the peak voltage (100 volts, since peak-to-peak is double the peak), then convert to RMS by multiplying by 0.707 (about 70.7 volts), square this (about 5000), and divide by the load resistance (50 ohms). This calculation gives you 100 watts, indicating the transmitter’s peak power output.

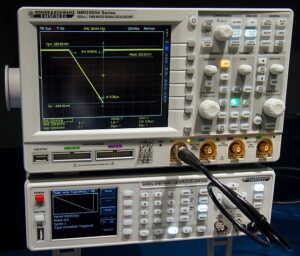

Improving the frequency response of an oscilloscope can be achieved by increasing the horizontal sweep rate and enhancing the frequency response of the vertical amplifier. The horizontal sweep rate affects how quickly the oscilloscope can display changes in the signal over time, while the vertical amplifier’s frequency response determines how accurately it can display changes in signal amplitude at different frequencies.

The accuracy, frequency response, and stability of an oscilloscope are primarily limited by the accuracy of its time base and the linearity and bandwidth of its deflection amplifiers. The time base accuracy affects how accurately the oscilloscope can measure time and thus frequency. The linearity and bandwidth of the deflection amplifiers affect how accurately the oscilloscope can display the amplitude of signals, especially at higher frequencies.

For the most accurate readings of transmitter output power, an RF wattmeter should be connected directly at the transmitter output connector. This placement ensures that the wattmeter measures the power being delivered by the transmitter before any potential losses in the transmission line or antenna system.

To find the peak-to-peak voltage from the RMS voltage of a sine wave, you first calculate the peak voltage by dividing the RMS voltage by 0.707 (since RMS is approximately 0.707 of the peak voltage). For an RMS voltage of 120 volts, the peak voltage is 120 / 0.707 ≈ 169.7 volts. The peak-to-peak voltage is twice the peak voltage, so it’s approximately 339.4 volts (169.7 volts × 2).

The effective value of a sine wave, also known as the RMS value, is approximately 70.7% of its maximum (peak) value. This percentage reflects the equivalent DC value in terms of the power the AC wave can deliver. It’s a crucial concept in AC power systems, as it allows for meaningful comparisons and calculations involving AC and DC.

To calculate the PEP from an 800 volts peak-to-peak measurement across a 50-ohm load, first, find the peak voltage (400 volts, as peak-to-peak is double the peak), then convert to RMS by multiplying by 0.707 (about 282.8 volts), square this (about 80000), and divide by the load resistance (50 ohms). This calculation gives you 1600 watts, which is the transmitter’s peak power output.

When calibrating a station to a standard frequency like WWV, the goal is to achieve a beat tone that is as low as possible, ideally approaching zero. This low beat frequency, with a long period, indicates that the station’s frequency is very close to the standard frequency. A low beat tone is easier to discern and adjust for precise calibration, as it represents a minimal frequency difference between the station and the standard signal.

To measure the sensitivity of an FM receiver for a 12 dB SINAD (Signal-to-Noise and Distortion) ratio, you need a calibrated RF signal generator with FM tone modulation and a total harmonic distortion (THD) analyzer. The signal generator provides a known signal to the receiver, and the THD analyzer measures the level of unwanted signals (noise and distortion) compared to the desired signal. A 12 dB SINAD ratio is a standard measure of receiver sensitivity, indicating how well the receiver can pick up weak signals in the presence of noise and distortion.

The frequency accuracy of a dip meter is affected by factors like hand capacity (the effect of the operator’s hand on the meter), stray capacity (unwanted capacitive effects from nearby objects), and over coupling (too much interaction with the circuit under test). However, the transmitter power output is not a factor that affects the frequency accuracy of a dip meter. Dip meters are passive devices and are used to measure resonant frequencies, independent of the power output of a transmitter.

The RMS value of a sine wave is about 0.707 times its peak value. For a sine wave with a peak voltage of 17 volts, the RMS voltage is 17  0.707, which is approximately 12 volts. This RMS value represents the effective voltage of the AC waveform, equivalent to a DC voltage in terms of the power it can deliver to a resistor.

The traditional method for verifying the accuracy of a crystal calibrator is to zero-beat it against a known standard frequency, such as that broadcast by WWV (a time signal radio station operated by NIST). Zero-beating involves adjusting the crystal oscillator until its frequency matches the standard frequency, indicated by a minimal or zero beat frequency (the difference in frequency between the two signals). This method ensures that the crystal calibrator is operating at the correct frequency.

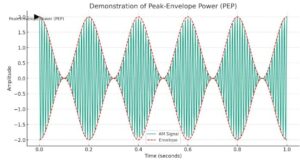

Peak-envelope power (PEP) refers to the maximum power level that a transmitter sends to the antenna transmission line during a single RF cycle, specifically at the highest point of the modulation envelope. This is a crucial measure in radio communications as it indicates the transmitter’s maximum output capability during modulation.

The frequency accuracy of a frequency counter is primarily determined by the characteristics of its internal time-base generator, usually a crystal oscillator. The stability and precision of this time-base generator are crucial, as it provides the reference frequency against which incoming signals are measured. Factors like the size of the counter, the type of display, or the number of digits displayed do not directly affect the accuracy of the frequency measurements.

The bandwidth of an oscilloscope refers to the range of frequencies it can accurately display. Specifically, it is the highest frequency at which the oscilloscope can measure a signal while still accurately displaying its waveform. Bandwidth is a critical specification for an oscilloscope, as it determines the range of signals that can be effectively analyzed.

An AC voltmeter is calibrated to read the effective value of an AC voltage, which is the RMS value. This effective value is a measure of the actual power or heating effect of the AC voltage, comparable to a DC voltage of the same magnitude. It’s a more meaningful measurement than peak or average values for practical electrical applications.

In this scenario, the Lissajous figure formed on the oscilloscope can be used to determine the unknown frequency. The number of vertical loops divided by the number of horizontal loops gives the ratio of the unknown frequency to the known frequency. Here, 5 vertical loops and 2 horizontal loops indicate that the unknown frequency is 5/2 times the known frequency of 100 kHz. Therefore, the unknown frequency is 250 kHz / 2 = 125 kHz.

The accuracy of a frequency counter can be improved by enhancing the accuracy of its time base. The time base is the reference against which the frequencies are measured. A more accurate time base, such as a high-precision crystal oscillator or an external reference like a GPS-disciplined oscillator, will result in more accurate frequency measurements.

A voltage-controlled crystal oscillator (VCXO) is not considered a high-stability reference by itself. While it allows for fine-tuning of the frequency through voltage changes, it does not inherently provide the high level of frequency stability found in oven-controlled (OCXO), GPS disciplined (GPSDO), or temperature-compensated (TCXO) oscillators. These other types of oscillators include additional mechanisms to stabilize the frequency against variations in temperature, physical conditions, or other external factors.

To calculate the power output of a transmitter into a resistive load using a voltmeter, you use the formula P = E²/R, where P is the power, E is the voltage, and R is the resistance. This formula is derived from Ohm’s law and the power law, and it’s useful for determining the power delivered to a load, such as an antenna or a dummy load, by a transmitter.

When two signals of different frequencies are fed into an oscilloscope (one to the horizontal input and the other to the vertical input), a Lissajous pattern is formed. For signals with frequencies of 100 Hz and 150 Hz, the pattern will have a ratio of 3:2 (150 Hz is 1.5 times 100 Hz), resulting in a pattern with 3 horizontal loops and 2 vertical loops. These patterns are useful for comparing frequencies and phase relationships between signals.

To calculate the Peak-Envelope Power (PEP) using an oscilloscope, you measure the Peak-Envelope Voltage (PEV) across a dummy load, multiply this value by 0.707 to convert it to RMS, square this RMS value, and then divide by the load resistance (RL). This method provides a practical way to determine the maximum power output of a transmitter during modulation.
