Understanding Spread Spectrum Communication (A-005-009-001)

Defining Spread Spectrum Communication

Question (A-005-009-001) focuses on identifying the communication system where the RF carrier varies based on a predetermined sequence. The answer, C. Spread spectrum communication, encapsulates a key technique in advanced digital communications. Spread spectrum communication is a method where the signal is deliberately spread over a wide frequency band, much wider than the minimum bandwidth needed to transmit the data. This spreading is achieved by varying the RF carrier in a specific, often pseudorandom, sequence.

The primary advantage of spread spectrum is its resistance to interference and eavesdropping. By spreading the signal across a broader bandwidth, it becomes more difficult for unintended receivers to detect or interfere with the transmission. In ham radio, this technique is particularly advantageous in crowded frequency bands or in environments with high levels of potential interference. Furthermore, spread spectrum techniques can provide a degree of security, as the specific spreading sequence acts like a code that only intended receivers can easily decipher.

Another significant advantage of spread spectrum communication is its ability to reduce the impact of multipath fading, which is a common issue in radio communication where signals arrive at the receiver through various paths. The wide bandwidth of spread spectrum signals allows for better resolution of multipath signals, thus improving overall reception quality.

The scatter chart above simplifies the concept of Spread Spectrum compared to traditional fixed-frequency transmission. Here’s a breakdown of what each part represents:

• Red dots: Indicate a traditional fixed-frequency transmission where the signal remains at a constant frequency (5 Hz in this case) over time. This is typical of non-spread spectrum communications, where the signal occupies a narrow band of frequencies.
• Blue dots: Represent Frequency Hopping Spread Spectrum (FHSS) where the transmission frequency changes (hops) pseudorandomly between 1 Hz and 10 Hz over time. This spreading of the signal across multiple frequencies enhances security and resistance to interference.
• Green ‘X’ markers: Illustrate Direct Sequence Spread Spectrum (DSSS), where the signal is spread across a range of frequencies from 1 Hz to 10 Hz simultaneously, using a pseudorandom code to modulate the carrier. Like FHSS, DSSS increases the signal’s resilience against eavesdropping and jamming.

This visualization demonstrates the fundamental difference between fixed frequency and spread spectrum techniques, highlighting how Spread Spectrum (both FHSS and DSSS) disperses the signal over a broader frequency range to improve communication security and reliability. ​

Parallels:

1. Camouflaging in Nature: Spread spectrum communication can be likened to the way certain animals use camouflage to blend into their environment, making them less detectable and resistant to threats.
2. Scattering Seeds Widely for Growth: Similar to scattering seeds over a broad area to ensure growth in various conditions, spreading a signal over a wide frequency band increases the likelihood of successful transmission despite environmental challenges.

Question Summary and Key Takeaways:

1. Wide-Bandwidth Approach: Spread spectrum communication involves spreading a signal over a frequency band wider than typically necessary.
2. Enhanced Security and Privacy: The technique provides resilience against interference and eavesdropping due to its wide-band nature.
3. Use in Ham Radio: Valuable in ham radio for reliable communication in congested or challenging environments.
4. Multipath Fading Reduction: Spread spectrum helps in mitigating the effects of multipath fading, enhancing reception quality.
5. Pseudorandom Sequence Utilization: The variation of the RF carrier according to a pseudorandom sequence is a key characteristic of spread spectrum communication, adding a layer of security and complexity to the signal.

Frequency Hopping in Spread Spectrum (A-005-009-002)

Characterizing Frequency Hopping Spread Spectrum

Question (A-005-009-002) explores the concept of a spread spectrum communications system where the center frequency of a carrier is altered rapidly in accordance with a pseudorandom list of channels. The correct answer, C. Frequency hopping, defines a specific type of spread spectrum technique. Frequency hopping spread spectrum (FHSS) involves changing the carrier frequency multiple times per second, following a pseudorandom sequence known only to the transmitter and receiver. This rapid alteration makes the transmission highly resistant to interference and jamming.

FHSS is beneficial in environments where the spectrum is crowded or in scenarios where security and resistance to jamming are paramount. Each brief transmission on a specific frequency appears as a momentary and random blip in the spectrum, making it difficult for unauthorized receivers to intercept or disrupt the communication effectively. Additionally, FHSS is adept at dealing with multipath interference, as each hop in the frequency is likely to experience different propagation characteristics, thereby reducing the likelihood of signal fading or loss.

In amateur radio, FHSS can be used in various digital modes, offering an efficient way to maintain communication integrity, especially in contested frequency environments or for applications requiring a higher level of security.

The graph above demonstrates the concept of Frequency Hopping Spread Spectrum (FHSS). In FHSS, the signal’s carrier frequency is rapidly switched among many frequency channels, according to a specific sequence known only to the transmitter and receiver, making it difficult for eavesdroppers to intercept or jam the communication.

This example shows a simplified frequency hopping pattern over time, where the transmission frequency changes among 2 Hz, 4 Hz, 8 Hz, 16 Hz, and 32 Hz at regular intervals. Each “hop” represents a change in frequency, and the pattern continues throughout the communication. This method spreads the signal over a wide band of frequencies, enhancing security and resistance to interference compared to fixed-frequency transmission.

Parallels:

1. Dodgeball Maneuvers: Frequency hopping can be likened to the rapid, unpredictable movements of a dodgeball player, making it difficult for opponents to target them.
2. Switching Channels on a Radio: It’s similar to quickly changing radio channels in a pattern known only to the user, thereby avoiding staying on any channel long enough to be easily tracked or interfered with.

Question Summary and Key Takeaways:

1. Rapid Frequency Changes: Frequency hopping involves changing the carrier frequency rapidly according to a pseudorandom sequence.
2. Interference Resistance: This technique enhances resistance to interference and jamming.
3. Use in Ham Radio: Applicable in various digital modes in amateur radio, especially in crowded spectrum conditions.
4. Security Enhancement: Frequency hopping offers a layer of security by making transmissions hard to intercept.
5. Reduction of Multipath Interference: The changing frequencies reduce the impact of multipath interference, improving signal reliability.

Direct Sequence Spread Spectrum (A-005-009-003)

Exploring Direct Sequence in Spread Spectrum Communication

Question (A-005-009-003) asks about the spread spectrum communications system that involves using a fast binary bit stream to shift the phase of an RF carrier. The correct answer, C. Direct sequence, pertains to a method in spread spectrum communication where a high-rate binary sequence, often pseudorandom, is used to modulate the carrier signal. This modulation spreads the signal over a wider frequency band than the original unmodulated carrier would occupy.

Direct sequence spread spectrum (DSSS) works by multiplying the data signal with a pseudorandom noise signal at a much higher frequency. This process, known as ‘chip coding’ or ‘chipping’, increases the bandwidth of the signal, making it appear as noise to unintended receivers. However, with the correct ‘key’ (the pseudorandom sequence), the receiver can despread the signal back to its original form. This technique is highly effective in mitigating interference, as the spreading makes the signal more resistant to narrowband interference.

In ham radio, DSSS is useful for digital communication modes where robustness against interference is crucial. It also provides a level of security, as the signal is hard to intercept or jam without knowledge of the pseudorandom sequence.

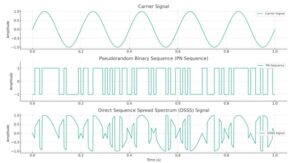

The graph above illustrates the principle of Direct Sequence Spread Spectrum (DSSS) communication. DSSS is a method where a high-rate binary sequence, often pseudorandom (referred to as a Pseudorandom Noise or PN sequence), is used to modulate a carrier signal. This process effectively spreads the signal across a wider frequency band than what the original unmodulated carrier would occupy.

• Top graph (Carrier Signal): Shows the original carrier signal before modulation. This sinusoidal wave represents the unspread signal at a specific carrier frequency.
• Middle graph (Pseudorandom Binary Sequence – PN Sequence): Depicts the high-rate pseudorandom binary sequence used for spreading the signal. The sequence consists of -1s and 1s, changing at a much higher rate than the carrier frequency.
• Bottom graph (DSSS Signal): Demonstrates the result of modulating the carrier signal with the PN sequence. The modulation spreads the energy of the carrier signal over a broader frequency range, increasing the bandwidth of the transmitted signal.

This spreading technique enhances the security and robustness of the communication, making it more resistant to interference and eavesdropping. The receiver, knowing the PN sequence, can correlate the incoming signal with the same PN sequence to recover the original information, effectively despread the signal back to its original bandwidth. ​

Parallels:

1. Noise-Canceling Headphones: DSSS can be compared to noise-canceling headphones, which use additional noise (the pseudorandom sequence) to effectively cancel out unwanted external sounds (interference).
2. Encryption in Digital Communication: Similar to encrypting a message, DSSS uses a pseudorandom sequence to ‘encrypt’ the radio signal, making it less susceptible to interception.

Question Summary and Key Takeaways:

1. Binary Bit Stream Modulation: Direct sequence involves using a high-rate binary sequence to modulate the RF carrier.
2. Bandwidth Expansion: The technique spreads the signal over a wider bandwidth than the original carrier.
3. Resistance to Interference: DSSS is effective in mitigating narrowband interference.
4. Security Aspect: The pseudorandom sequence used in DSSS adds a layer of security to the transmission.
5. Application in Digital Modes: Useful in ham radio digital modes where signal integrity and resistance to interference are important.

Frequency Hopping in Spread Spectrum (A-005-009-004)

Application of Frequency Hopping Technique

Question (A-005-009-004) asks about the type of transmission with which frequency hopping is used. The correct answer, D. Spread spectrum, identifies frequency hopping as a key technique in spread spectrum transmission. Frequency hopping spread spectrum (FHSS) is a method where the signal’s frequency is rapidly changed or “hopped” according to a predefined pattern. This pattern is known to both the transmitter and the receiver, allowing the receiver to follow along with the frequency changes and correctly decode the message.

In ham radio, FHSS is particularly useful for avoiding interference. Since the transmission quickly jumps between frequencies, it minimizes the chance of prolonged interference at any single frequency. This makes FHSS ideal for environments with potential electronic interference or jamming. Additionally, FHSS can provide a level of security, as the specific hopping pattern acts like a form of encryption, making it difficult for unauthorized parties to intercept or decode the transmission.

Parallels:

1. Playing a Fast-Paced Musical Chair Game: Frequency hopping in spread spectrum is akin to changing seats rapidly in a game of musical chairs, making it difficult for others to predict the next move.
2. Quickly Changing Radio Stations: It’s similar to rapidly changing radio stations to avoid unwanted noise or interference, staying only briefly on each frequency.

Question Summary and Key Takeaways:

1. FHSS in Spread Spectrum: Frequency hopping is a crucial technique used in spread spectrum transmission.
2. Rapid Frequency Changes: It involves quickly changing the transmission frequency in a predefined pattern.
3. Avoiding Interference: FHSS is effective in minimizing the impact of interference and jamming.
4. Security Through Obscurity: The hopping pattern can act as a form of encryption, enhancing communication security.
5. Useful in Ham Radio: This technique is particularly beneficial in ham radio for maintaining clear communication in congested environments.

Direct Sequence in Spread Spectrum (A-005-009-005)

Utilization of Direct Sequence in Communication

Question (A-005-009-005) inquires about the type of transmission that utilizes direct sequence. The answer, D. Spread spectrum, indicates the use of direct sequence spread spectrum (DSSS) in modern communication systems. DSSS is a method where the carrier signal is modulated by a high-speed pseudorandom binary sequence, which is not related to the information being sent. This sequence, known as a chip sequence, spreads the data over a wider bandwidth than what is normally required for plain data transmission.

The use of DSSS in ham radio and other forms of communication enhances the signal’s resistance to interference and eavesdropping. By spreading the signal across a broader spectrum, it becomes more difficult for unintended receivers to detect or jam the signal. Additionally, DSSS can improve signal clarity in environments with multipath interference, as the spreading allows for better differentiation of the signal from reflections and other distortions.

Parallels:

1. Blending into a Crowd: Using DSSS in spread spectrum is like blending into a crowd to avoid being noticed, where the signal is ‘hidden’ in a wider bandwidth.
2. Diluting a Signal: It’s comparable to diluting a colored dye in water; the original color (signal) is spread out, becoming less intense and more difficult to isolate.

Question Summary and Key Takeaways:

1. DSSS in Spread Spectrum: Direct sequence is a technique used in spread spectrum transmission.
2. High-Speed Pseudorandom Modulation: The carrier is modulated by a fast pseudorandom binary sequence.
3. Enhanced Interference Resistance: DSSS increases the signal’s resilience against interference and jamming.
4. Security and Privacy: The spreading technique adds a level of security by making the signal less detectable.
5. Mitigating Multipath Interference: DSSS is effective in environments with multipath interference, enhancing signal clarity.

Pseudo-Random Sequences in Spread Spectrum (A-005-009-006)

Role of Pseudo-Random Sequences in Spread Spectrum

Question (A-005-009-006) delves into the type of signal used to produce a predetermined alteration in the carrier for spread spectrum communication. The correct answer, D. Pseudo-random sequence, highlights the crucial role of these sequences in spread spectrum techniques. A pseudo-random sequence is a sequence of numbers that appears random but is actually generated by a deterministic process. In spread spectrum communication, such as frequency hopping or direct sequence, this sequence is used to determine the pattern of frequency changes or phase shifts.

The use of pseudo-random sequences in spread spectrum allows for a controlled and predictable alteration of the carrier signal while maintaining the appearance of randomness to outside observers. This randomness makes it difficult for unintended receivers to predict or interfere with the signal, enhancing the security and robustness of the communication. In ham radio, employing pseudo-random sequences in spread spectrum modes helps operators to maintain reliable and secure communication, even in congested or challenging signal environments.

Parallels:

1. Cryptographic Keys: Pseudo-random sequences in spread spectrum are akin to cryptographic keys in encryption, providing a method to secure and encode the transmission.
2. Complex Dance Patterns: They can be compared to complex dance patterns that appear random but follow a specific choreographed sequence known only to the participants.

Question Summary and Key Takeaways:

1. Pseudo-random Sequences in Spread Spectrum: These sequences are essential for altering the carrier in a controlled yet seemingly random manner.
2. Deterministic Yet Random Appearance: While pseudo-random sequences are generated deterministically, they appear random to outside observers.
3. Enhanced Security and Robustness: Their use in spread spectrum enhances communication security and interference resistance.
4. Predictable Alteration of Carrier: The sequence provides a predictable pattern for frequency hopping or phase shifting.
5. Utility in Ham Radio: Pseudo-random sequences are particularly useful in ham radio for maintaining secure and reliable communication.

Monitoring Spread Spectrum Transmissions (A-005-009-007)

Challenges in Monitoring Spread Spectrum Communications

Question (A-005-009-007) addresses why monitoring a spread spectrum transmission is difficult. The correct answer, A. Your receiver must be frequency-synchronized to the transmitter, explains the primary challenge. In spread spectrum communications, such as frequency hopping or direct sequence, the signal is spread over a wide bandwidth and often follows a pseudo-random sequence. To successfully receive and decode this signal, the receiver must be synchronized with the transmitter’s sequence and frequency changes.

This requirement for synchronization makes it challenging to monitor spread spectrum signals unless the receiver has prior knowledge of the transmission’s parameters. Without this synchronization, the spread spectrum signal appears as noise or unintelligible data, providing inherent security against eavesdropping and unauthorized interception. For ham radio operators, this means that spread spectrum techniques offer a way to achieve more private and secure communication, but also that they must have sophisticated equipment capable of synchronizing with the spread spectrum parameters to receive these transmissions.

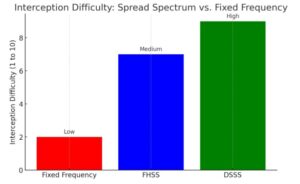

The graph above illustrates the security aspect of Spread Spectrum compared to traditional fixed-frequency transmission by focusing on the difficulty of signal interception:

• Fixed Frequency (Red Bar): Has a low interception difficulty level, making it relatively easy for unauthorized parties to detect and intercept the signal. Since the signal remains at a constant frequency, it’s more susceptible to eavesdropping and jamming.
• Frequency Hopping Spread Spectrum (FHSS) (Blue Bar): Exhibits a medium level of interception difficulty. The pseudorandom hopping between frequencies makes it harder for an interceptor to predict the next frequency and successfully intercept the signal. This provides a significant security improvement over fixed-frequency transmission.
• Direct Sequence Spread Spectrum (DSSS) (Green Bar): Is marked with a high interception difficulty level. The use of a pseudorandom code to spread the signal across a wide frequency band complicates the interception process. An unauthorized receiver not only needs to be tuned to the broad range of frequencies but also must know the spreading code to successfully decode the signal.

This visualization emphasizes how Spread Spectrum techniques enhance communication security by making it more challenging for unauthorized parties to intercept and decipher the transmitted signals.

Parallels:

1. Lock and Key Mechanism: Monitoring spread spectrum transmissions is like trying to open a lock without the right key; synchronization is needed to ‘unlock’ and decode the signal.
2. Tuning into a Specific Radio Station: It’s similar to tuning into a specific radio station; without the exact frequency, the broadcast is just static noise.

Question Summary and Key Takeaways:

1. Synchronization Requirement: Effective monitoring of spread spectrum transmissions requires synchronization with the transmitter.
2. Appears as Noise Without Synchronization: Unsynchronized receivers perceive the signal as noise or garble.
3. Security Through Obscurity: Spread spectrum provides security by making it difficult for unintended receivers to intercept the communication.
4. Complexity in Reception: Receiving spread spectrum signals demands advanced equipment capable of synchronization.
5. Private and Secure Communication: For ham radio operators, spread spectrum offers a method for more secure communication.

Frequency Hopping Spread Spectrum Defined (A-005-009-008)

Understanding Frequency Hopping Spread Spectrum

Question (A-005-009-008) seeks to define frequency hopping spread spectrum. The correct answer, B. The carrier frequency is changed in accordance with a pseudo-random list of channels, describes this spread spectrum technique. Frequency hopping spread spectrum (FHSS) involves rapidly changing the carrier frequency of a transmission over a wide range of frequencies in a sequence known to both the transmitter and receiver. This pseudo-random sequence of frequency changes makes the transmission more resistant to interference and difficult to intercept.

In ham radio, FHSS can be particularly useful in congested frequency environments or where secure communication is desired. By hopping across a wide range of frequencies, the risk of interference with or interception by other communications is significantly reduced. The rapid changes in frequency also make it difficult for unauthorized listeners to tune into the transmission long enough to decipher any meaningful information.

Parallels:

1. Navigating Through a Maze: Frequency hopping in spread spectrum is akin to navigating through a maze using a specific, unpredictable path, making it hard for others to trace or predict the route.
2. Changing Lanes in Traffic: It can be compared to a vehicle changing lanes in a pattern known only to the driver, effectively avoiding consistent tracking by others.

Question Summary and Key Takeaways:

1. Rapid Frequency Changes: Frequency hopping involves quickly changing the transmission frequency in a pseudo-random sequence.
2. Interference and Eavesdropping Resistance: This technique enhances resistance to both interference and unauthorized interception.
3. Useful in Ham Radio: FHSS is advantageous in crowded spectrum environments or for secure communication.
4. Complex Frequency Pattern: The pseudo-random frequency changes make the signal hard to track or decode.
5. Enhanced Communication Security: FHSS provides a layer of security in digital communication for ham radio operators.

Direct-Sequence Spread Spectrum Explained (A-005-009-009)

Delving into Direct-Sequence Spread Spectrum

Question (A-005-009-009) asks about the technique known as direct-sequence spread spectrum. The correct answer, B. The carrier is phase-shifted by a fast binary bit stream, accurately describes this method. In direct-sequence spread spectrum (DSSS), the carrier signal is modulated by a high-rate binary sequence, often termed a pseudorandom noise code. This modulation spreads the signal’s energy over a wider frequency band than the unmodulated carrier, making the transmission more resistant to interference and eavesdropping.

DSSS is an effective method in digital communication for improving signal robustness and security. In ham radio, using DSSS can significantly enhance the performance of communication systems, especially in environments with high noise or potential jamming. The spreading of the signal over a wide bandwidth means that any interference would only affect a small portion of the signal, allowing for more effective error correction and maintaining the integrity of the transmission.

Parallels:

1. Water Ripple Effect: The spreading of the signal in DSSS is similar to the ripples caused by a stone thrown into a pond, expanding the impact over a broader area.
2. Encryption in Data Transmission: DSSS can be likened to encryption in data transmission, where the original signal is encoded in a way that makes it hard to decipher without the correct decoding key.

Question Summary and Key Takeaways:

1. Phase Shift with Binary Stream: Direct-sequence spread spectrum modulates the carrier with a high-rate binary bit stream.
2. Signal Spreading Over Wide Bandwidth: This technique spreads the signal over a broader frequency range.
3. Enhanced Signal Robustness: DSSS increases resistance to interference and jamming.
4. Security in Communication: The modulation method adds a level of security, making the signal hard to intercept.
5. Applicability in Ham Radio: DSSS is beneficial in noisy environments or for secure digital communication in ham radio.

Resistance of Spread-Spectrum Signals to Interference (A-005-009-010)

Why Spread-Spectrum Signals are Robust Against Interference

Question (A-005-009-010) examines why received spread-spectrum signals are so resistant to interference. The correct answer, A. Signals not using the spectrum-spreading algorithm are suppressed in the receiver, uncovers a key aspect of spread spectrum’s robustness. In spread spectrum communication, such as FHSS or DSSS, the signal is spread over a wider frequency bandwidth than necessary for simple point-to-point communication at the same data rate. This spreading means that any interfering signal, which typically does not follow the same spreading algorithm, will affect only a small portion of the spread-spectrum signal.

The receiver, which is synchronized with the transmitter’s spreading algorithm, can effectively filter out or minimize the impact of interference, as it can focus on the specific pattern of the spread spectrum signal. This attribute makes spread spectrum particularly valuable in environments with high levels of potential interference, such as in certain ham radio applications where operators might face challenges from overlapping signals or electronic noise.

Parallels:

1. Finding a Specific Voice in a Crowd: This is akin to picking out a specific voice in a crowded room, where despite the noise, one can focus on and understand a known voice.
2. Sorting Through Mixed Signals: Similar to a filter that sifts through mixed signals to find relevant information, the receiver in spread spectrum communication can isolate the intended signal from the noise.

Question Summary and Key Takeaways:

1. Suppression of Non-Spread Signals: Signals that don’t use the same spreading algorithm are effectively suppressed in the receiver.
2. Wide Frequency Bandwidth: Spread spectrum signals cover a wider bandwidth, reducing the relative impact of interference.
3. Selective Signal Filtering: Receivers can focus on the specific pattern of the spread spectrum signal, enhancing reception.
4. Value in Noisy Environments: This technology is beneficial in environments with significant electronic noise or overlapping signals.
5. Applicability in Ham Radio: Spread spectrum’s resistance to interference is advantageous for ham radio operators in congested frequency bands.

Frequency Hopping (FH) Technique in Spread Spectrum (A-005-009-011)

Mechanism of Frequency Hopping in Spread Spectrum

Question (A-005-009-011) explores how the frequency hopping (FH) technique in spread spectrum works. The correct answer, A. The frequency of an RF carrier is changed very rapidly according to a particular pseudo-random sequence, explains the operational principle of FH in spread spectrum communication. In frequency hopping, the signal’s transmission frequency is rapidly switched (or “hopped”) between many different frequency channels, following a pseudo-random sequence that is known to both the transmitter and receiver.

This rapid and seemingly random change in frequencies makes the signal difficult to intercept or jam, as each hop is brief and to a seemingly unpredictable frequency. In ham radio, frequency hopping can enhance the resilience of communications, particularly in situations where spectrum space is crowded or in scenarios where secure communication is critical. The effectiveness of FH in mitigating interference and ensuring secure communication lies in the unpredictability and rapidity of the frequency changes, which are synchronized between the transmitting and receiving stations.

Parallels:

1. Quick Steps in a Dance Routine: Frequency hopping is akin to a dancer taking quick, unpredictable steps according to a choreographed routine, making it hard for onlookers to follow or predict the next move.
2. Shuffling a Deck of Cards: Like shuffling a deck of cards where the order changes rapidly and unpredictably, FH changes transmission frequencies in a random yet controlled manner.

Question Summary and Key Takeaways:

1. Rapid Frequency Changes: Frequency hopping involves changing the transmission frequency rapidly according to a pseudo-random sequence.
2. Difficulty in Interception and Jamming: The quick and unpredictable frequency changes make the signal hard to intercept or jam.
3. Use in Crowded Spectrum Environments: FH is particularly useful in ham radio for communication in congested frequency spaces.
4. Secure Communication Method: The technique provides a layer of security and privacy in radio communications.
5. Synchronization Between Stations: Effective frequency hopping requires synchronization of the pseudo-random sequence between transmitter and receiver.
